The SVA-VDPRO-CHASIS Series is a new generation of modular Video Splicing Processors that integrate video processing and video control into a single platform, purpose-built for fine-pitch LED screens and large-scale professional displays. Each unit adopts a fully modular, plug-in architecture, allowing input and output cards to be freely configured and hot-swapped to match any project. Built on a pure-hardware FPGA system architecture, the series delivers stable, high-efficiency performance with low failure rates and easy maintenance. It provides industry-standard input connectors — including HDMI, DP, SDI, fiber and IP — and supports 10-bit video processing as well as 4K/8K high-definition input and output. LED 4K sending cards enable backup between OPT and Ethernet ports and ultra-long-distance transmission. The series supports multi-screen and multi-layer management, EDID management, input source cropping and renaming, BKG and OSD configuration, and HDR10/HLG processing. Adopting a B/S (browser/server) architecture, the processors can be accessed and controlled across Windows, macOS, iOS, Android and Linux without installing any dedicated software, and support multi-user online collaboration. Available in five chassis sizes — SVA-VDPRO-CHASIS-2U, -5U, -9U, -15U and -20U — the series scales from 26 million to 260 million pixels of loading capacity, suiting command and control rooms, broadcast, exhibitions, stage rental, transportation, energy and enterprise applications.

INQUIRE NOW

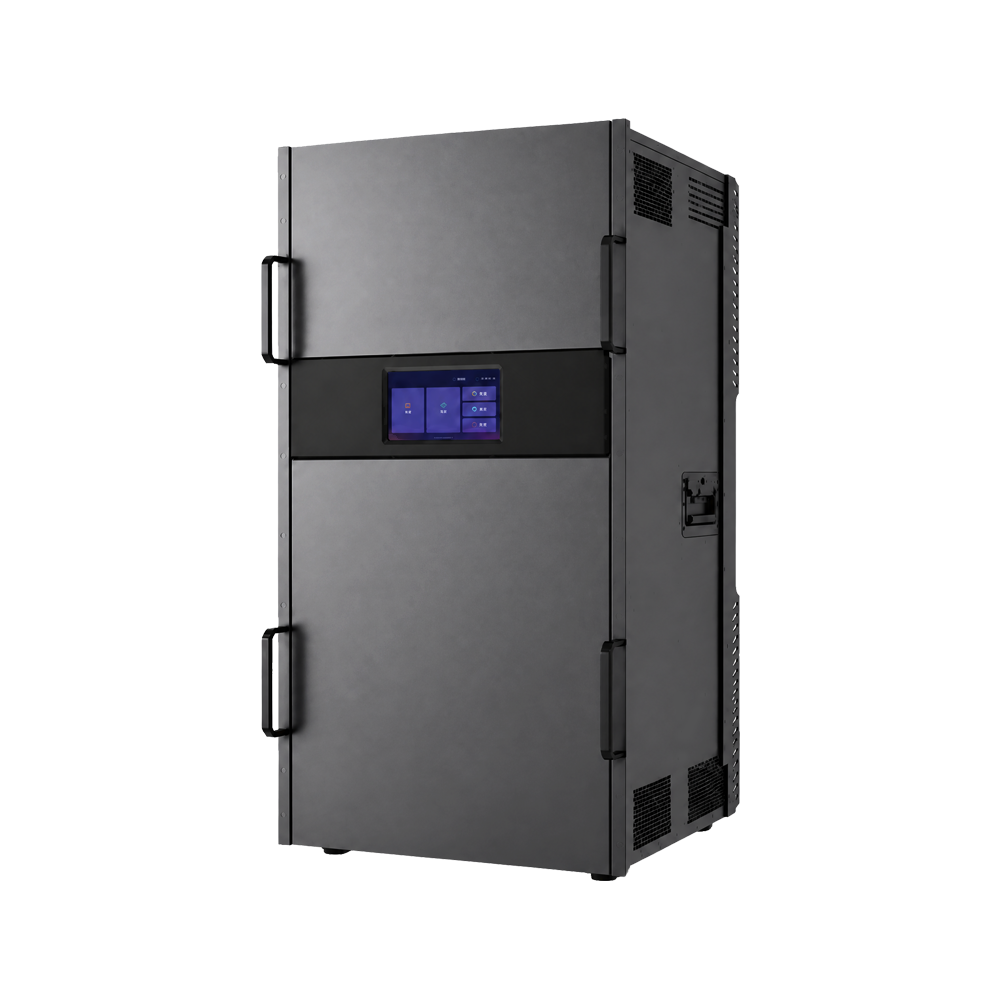

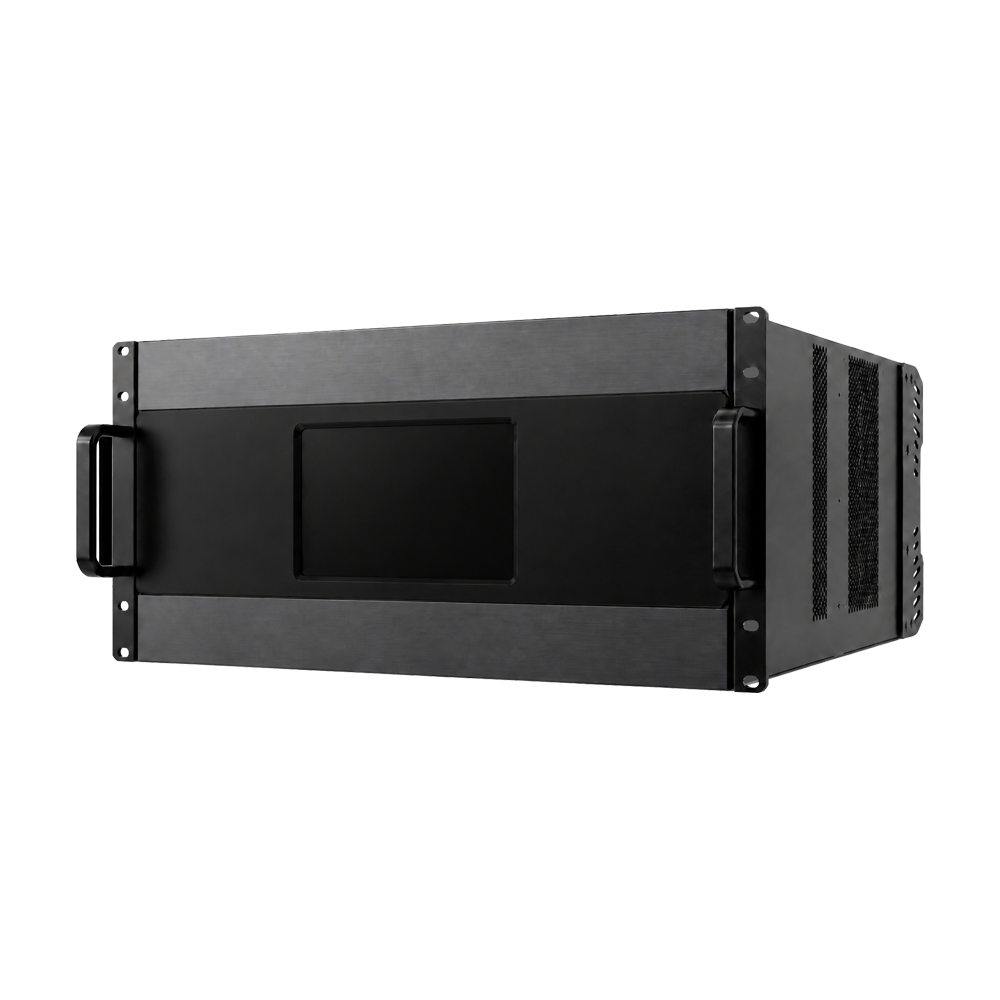

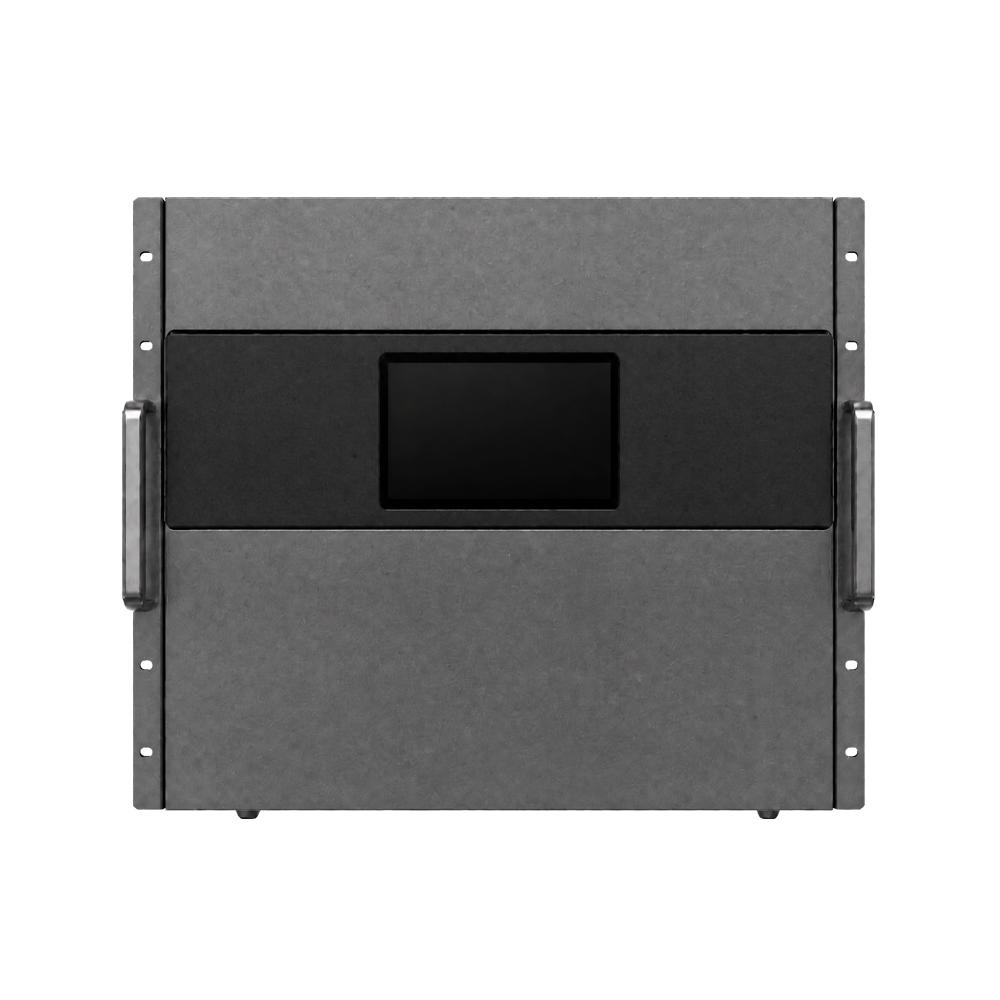

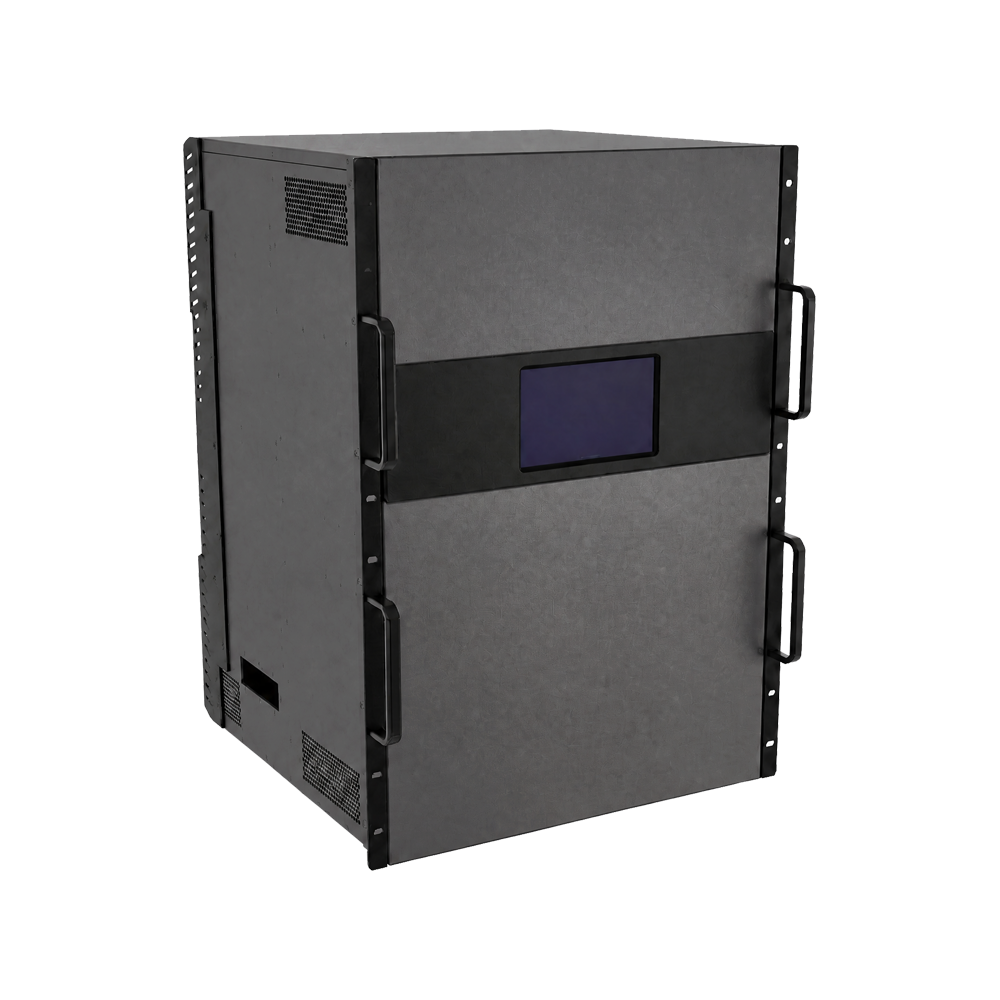

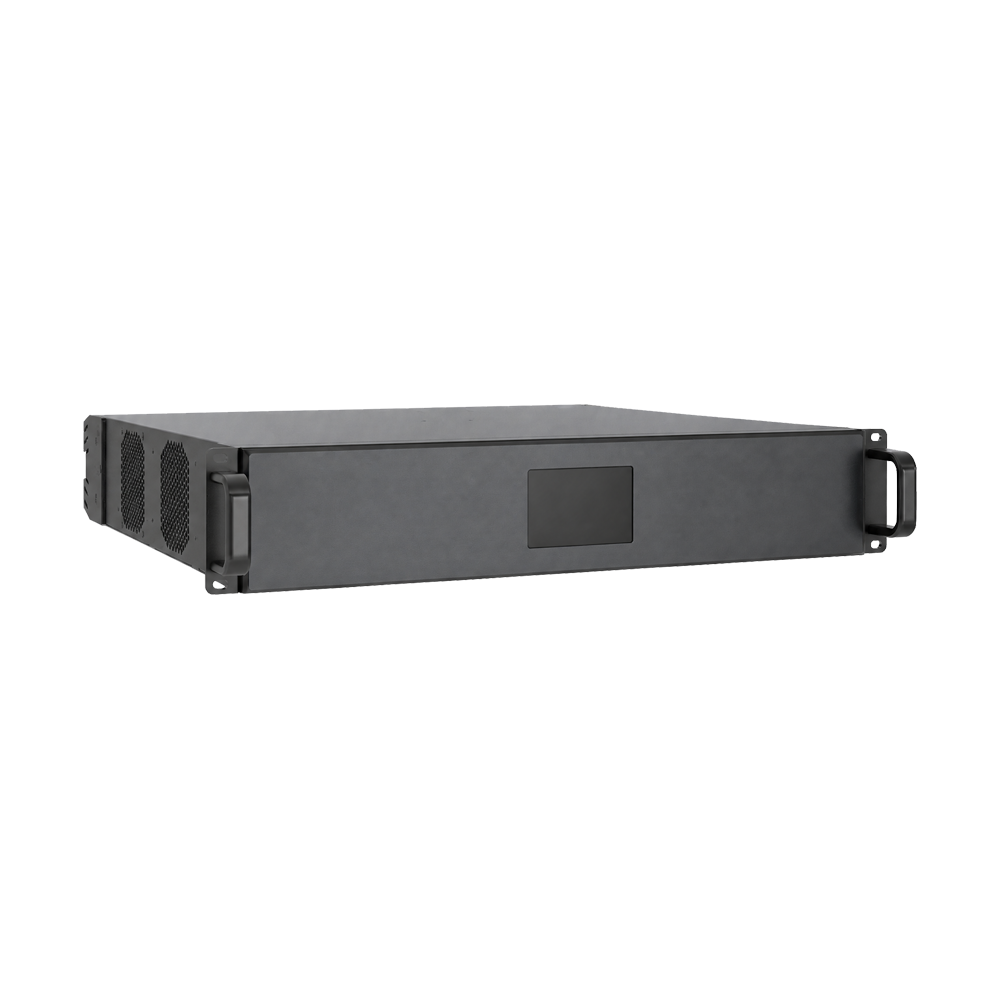

Product image

PRODUCT GALLERY

MORE PHOTOS

Feature

Modular, plug-in design for flexible configuration
• LED 4K sending cards
– The 20× RJ45 sending card (SVP-SendCard-J45-X20) loads up to 13,000,000 pixels.
– The 4× fiber sending card (SVP-SendCar-OPT-X4) loads up to 20,800,000 pixels and supports
copy and backup.
– Fiber transmission up to 10 km (single-mode) or 300 m (multi-mode).
• Multi-capacity input on a single card slot
– 4x 2K×1K@60Hz / 2x 4K×1K@60Hz / 2x 4K×2K@60Hz / 1x 4K×2K@120Hz or 8K×4K@30Hz
• Hot-swappable input and output cards, with online status monitoring of all cards
• Auto decryption of HDCP-encrypted sources; decimal frame rates supported
• HDR10 and HLG processing
Multi-screen management for centralized control
• Independent output resolution for each screen
• Output mosaic with frame-synchronization technology
• Irregular rectangle mosaic without limitation; input source grouping management
• Eye-saver mode and LCD bezel compensation
• Centralized preset-group management

Datasheet

Downloads

Ordering

Support

Technical Specifications

Power connector

100–240V~, 50/60Hz
Power supply

1 (redundant optional)
Operating Environment Temperature

0°C to 45°C
Operating Environment Humidity

0–80% RH, non-condensing
Storage Environment Temperature

–10°C to +60°C
Storage Environment Humidity

0–95% RH, non-condensing
Dimensions (W×D×H, mm)

482.6×529.8×88.1
Net weight (chassis)

11 kg
Packing box (mm)

660×570 ×210
Accessories

1× Power cord (2U / 5U / 9U); 2× Power cords (15U); 3× Power cords (20U). All models also include 1× RJ45 Ethernet cable, 1× Grounding cable and 1× HDMI cable.
