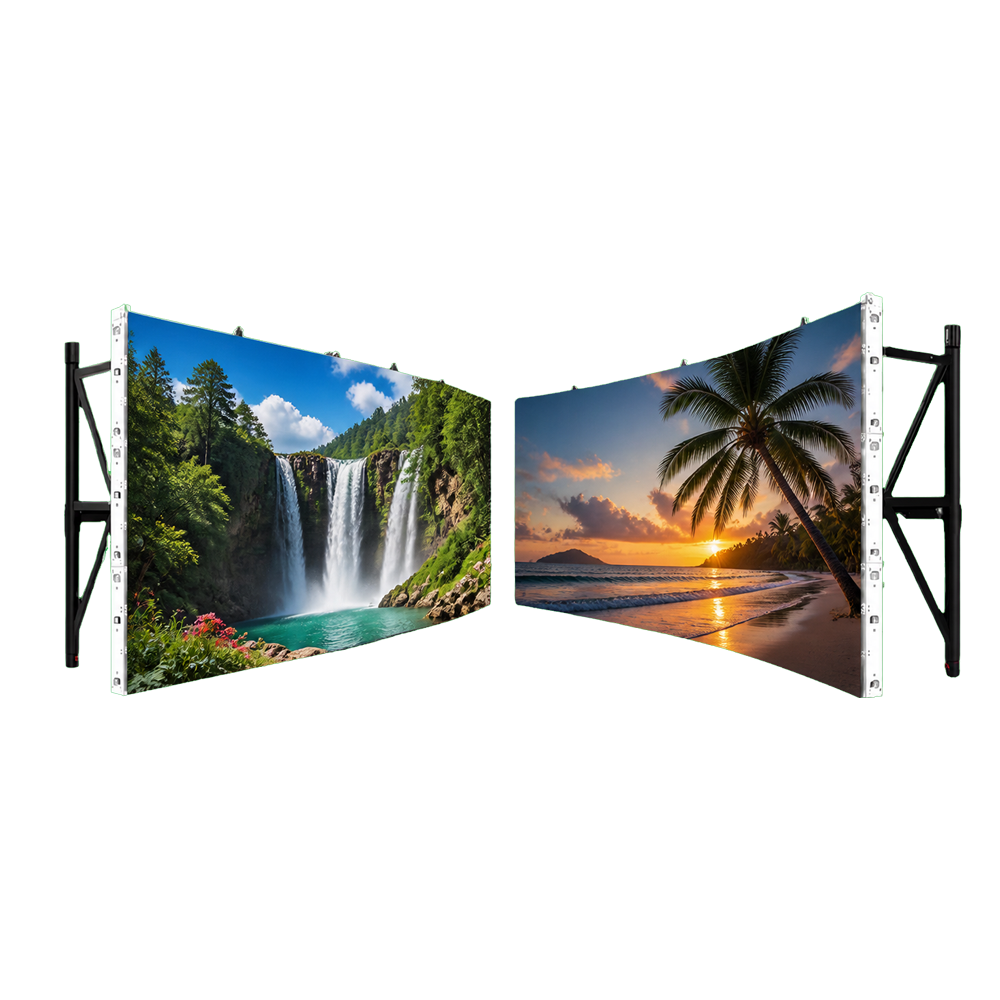

S-LSMD-OD Series is Starview's outdoor SMD LED display engineered for high brightness and all-weather reliability. Sealed cabinets and high-grade LEDs ensure clear, vivid images under direct sunlight and in harsh outdoor conditions. Ranging from 2.9 to 10mm pixel pitch on a 500 x 250mm module, it is suited to building facades, advertising billboards, stadiums and outdoor public displays that must remain readable day and night.

INQUIRE NOW

Product image

PRODUCT GALLERY

MORE PHOTOS

Feature

All-Weather Outdoor SMD Technology
High-brightness SMD LEDs with weather-sealed cabinets deliver strong sunlight readability, wide viewing angles and dependable performance across a wide temperature and humidity range for continuous 24/7 outdoor operation.
• Outdoor 2.9 – 10mm Pixel Pitch
• High-Brightness SMD
• Module: 500mm(W) x 250mm(H)
• Weatherproof Sealed Cabinet

Datasheet

Downloads

Ordering

Support

Technical specifications

Module Size (W x H, mm)

500 x 250

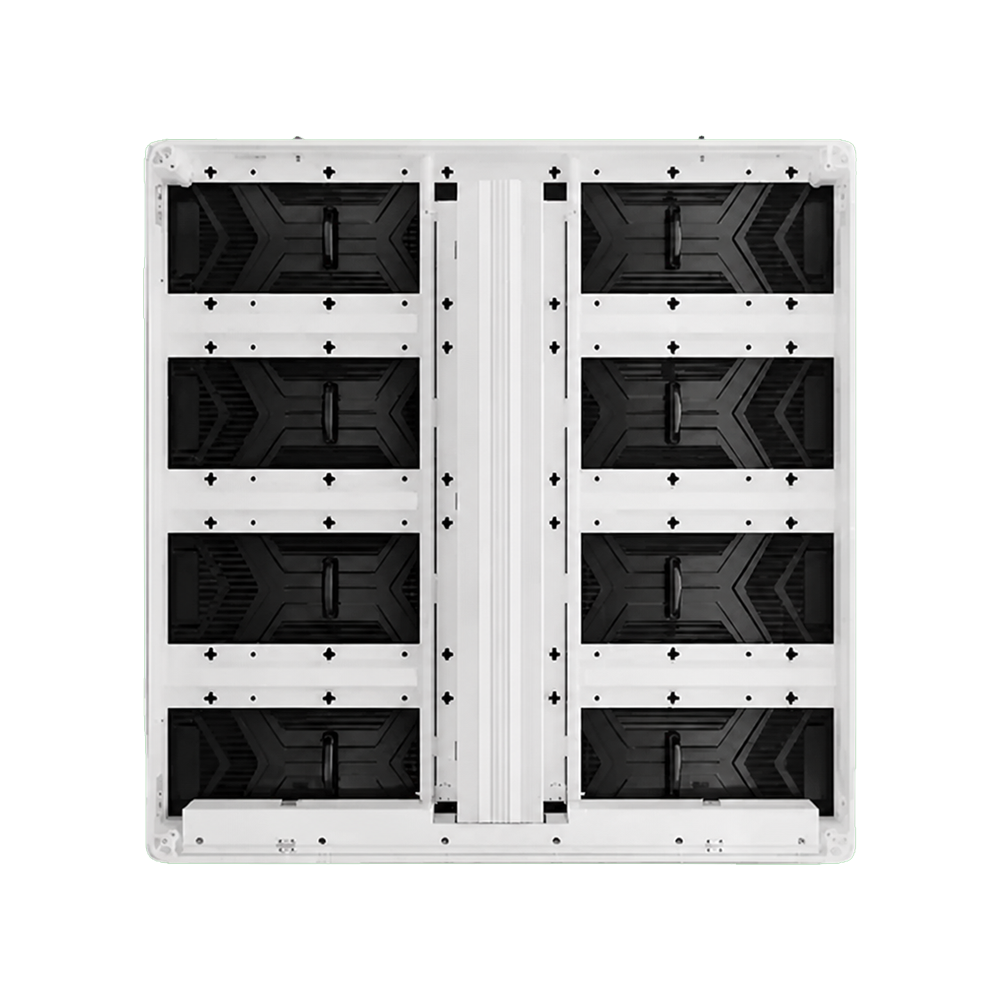

Cabinet Size (W x H x D, mm) (Customize)

1000 x 1000 x 83 (customizable 500/750 H)
Cabinet Weight

22.5 kg
Cabinet Material

Aluminium frame + plastic module base
Display Color

14 bit (proc. 16 bit)
Refresh Rate

3840 Hz
Contrast Ratio

10,000:1
Color Temperature

1000 - 18500 K (adjustable)
Viewing Angle (H/V)

160 / 160
Input Voltage

AC 90-264V 47-63Hz
