S-LEDSMD-ID Series is Starview's indoor fine-pitch LED display built on high-reliability SMD (Surface-Mounted Device) LED technology. Engineered for demanding indoor environments, it delivers vivid, uniform images with wide viewing angles and stable colour performance across long, continuous operating hours, while remaining fully front-installable and front-serviceable. The S-LEDSMD-ID Series offers 1.2, 1.5, 1.8, 2.5 and 3.0mm pixel pitch models. With a 640 x 480mm die-cast aluminium cabinet and standard modular layout, it is ideal for control rooms, corporate lobbies, retail spaces, conference rooms and broadcast studios.

INQUIRE NOW

Product image

PRODUCT GALLERY

MORE PHOTOS

Feature

Reliable Indoor SMD LED Technology
By using proven SMD packaging with a high-contrast black-face LED, the S-LEDSMD-ID Series from Starview delivers deep blacks, smooth greyscale and consistent brightness uniformity. The die-cast aluminium cabinet ensures precise, seamless splicing and fast front maintenance.
• Indoor 1.2, 1.5, 1.8, 2.5, 3.0mm Pixel Pitch
• SMD LED Technology

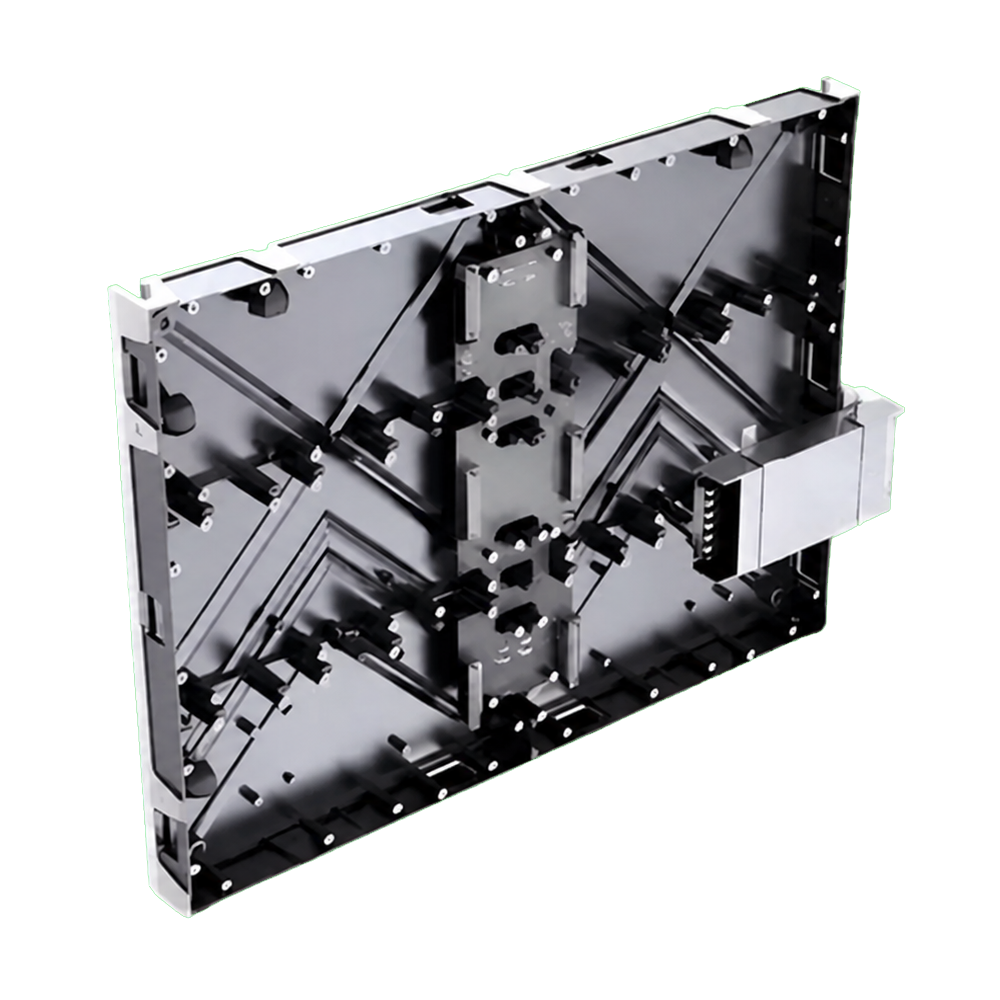

• Cabinet: 640mm(W) x 480mm(H)
• Die Casting Aluminium

Datasheet

Downloads

Ordering

Support

Technical specifications

Module Size (W x H, mm)

320 x 160
Cabinet Size (W x H x D, mm) (Customize)

640 x 480 (standard) / 640 x 640 / 320 x 640
Cabinet Weight

7.5 kg
Cabinet Material

Die-casting Aluminium
Brightness

600 - 800 nits
Display Color

14 bit
Refresh Rate

3840 Hz
Color Temperature

Adjustable
Viewing Angle (H/V)

160 / 160
Input Voltage

AC 110-240V 50/60Hz
